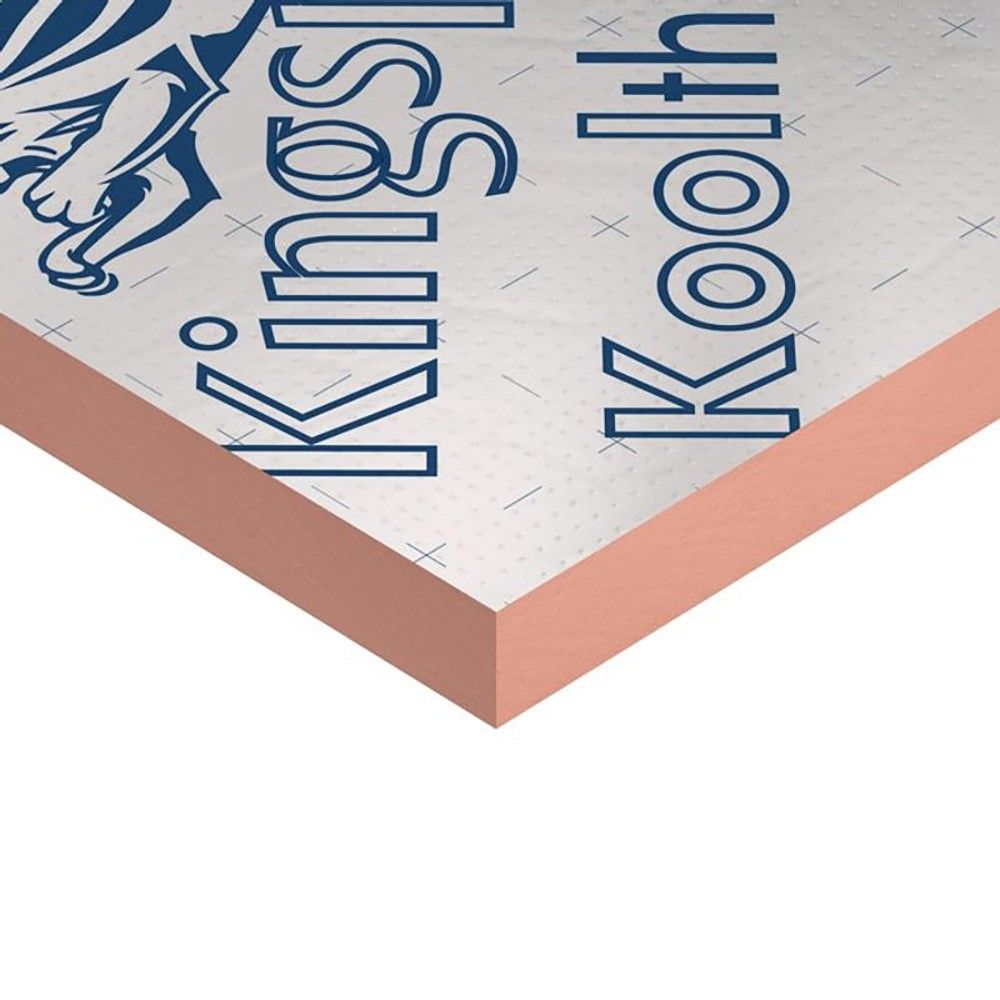

100mm Kingspan Kooltherm K108 Cavity Wall Insulation Board​ 1200mm x 450mm (2.7m²)
Product image for 100mm Kingspan Kooltherm K108 Cavity Wall Insulation Board​ 1200mm x 450mm (2.7m²)

100mm Kingspan Kooltherm K108 Cavity Wall Insulation Board​ 1200mm x 450mm (2.7m²)

About this product

Kooltherm K108 is a premium performance partial-fill cavity wall insulation board made by Kingspan. The boards have an excellent thermal conductivity of ~0.019 W/k, allowing them to achieve the same U-values as comparable products, but with a thinner insulation thickness. The boards also have good compressive strength, and resist moisture penetration, helping to reduce damp issues. Common uses are for partial fill cavity wall insulation on both new builds and refurbishment projects, especially where you need to maximise available space. With a board size of 1200mm × 450mm, this pack of 5 panels has a coverage of 2.7 m².

Key features

  • Premium performance insulation board made for partial fill cavity wall jobs
  • Dimensions: 1200mm x 450mm (4 X 1.5) with a thickness of 100mm
  • Supplied in packs of five, covering an area of 2.7m²
  • Made from fibre-free rigid thermoset phenolic core for superior thermal performance
  • Compressive strength: Typically exceeds ~100 kPa, for good dimensional stability
  • Resists moisture penetration: The clear cavity can be maintained, helping reduce potential damp issues.

Specifications

MaterialPhenolic Foam
TypeRigid Board
R-valueUp to 0.021 W/m.K (at thickness of 100mm)
Thickness100 mm
Dimensions1200mm x 450mm
Coverage area per pack2.7 m²
QuantityPack of 5 Sheets
ApplicationCavity Wall Insulation
Thermal conductivity0.019 W/mK
Reaction to fireEuroclass rating F (Under System 4 AVCP)
Environmental certificationsManufactured with a blowing agent that has zero ODP and low GWP.
Compression strengthExceeds 100 kPa
Vapor transmissionLow risk of condensation.
