Question 1

1. What is metal stud framing?

Accepted Answer

Metal stud framing is a construction method that uses pre-made galvanised steel sections to create frames for internal walls and ceilings. It’s commonly paired with plasterboard and insulation to make partition walls and metal plasterboard frames. Metal studding is widely used on UK commercial and residential projects due to its consistency, fire resistance, and the fact that it doesn’t swell, shrink, or warp with changes in moisture.

Question 2

2. How do you frame a wall using metal studs?

Accepted Answer

The basic process of installing metal stud framing is as follows:

Start by marking out and fixing metal track (U channel) pieces to the floor and ceiling along the wall line.
Measure and cut metal c studs to the correct height, then insert them vertically into the tracks at regular centres, typically 400mm or 600mm. Openings for doors or other entry points are formed using additional studs or heavier sections.
Secure the stud frame with self-drilling (tek) screws.
Install any planned services, e.g. wiring, by feeding them through the cut-outs. Rubber bushings can be used to prevent wires rubbing on sharp edges.
Install insulation within the stud cavity.
Once all the internal parts are installed, the frame can be drywalled and finished as required.

These are just the broadest strokes though. You can get more detailed technical guides from product manufacturers – for example this guide for British Gypsum Gypframe.

Question 3

3. How do you cut metal framing studs?

Accepted Answer

Metal framing studs are usually cut using tin snips, aviation snips, or a powered metal cutting tool such as a chop saw with a suitable blade. For lighter gauge studs, hand tools are often sufficient.

Question 4

4. Is metal stud framing cheaper than wood or timber stud framing?

Accepted Answer

Material costs for metal stud framing are often comparable to, or slightly higher than, timber. However, overall project costs can be lower in some cases due to faster installation and reduced waste, especially if you’re familiar with the system. Labour savings can also offset material costs on larger commercial projects.

Question 5

5. Metal stud framing vs timber stud framing – what are the advantages and disadvantages?

Accepted Answer

Metal and timber stud framing each have their own pros and cons. If you’re deciding between the two, you’ll want to consider the size of the stud you’re building, as well as the skills you have available.

Framing using metal studs is well suited to large commercial projects where speed and uniformity matter. However, metal stud walling can be less forgiving on site, require different fixings, and may need specialist tools for cutting and installation. Timber stud framing is easier to work with using standard tools and is widely understood across UK trades. It can be quicker for small jobs and is often more flexible for on-site adjustments. Timber can also provide better fixing grounds for joinery and fittings without additional supports.

We’ve summarised these pros and cons, plus some additional considerations, below:

Consideration	Metal stud framing	Timber stud framing
Build accuracy	Straight and consistent; no warping or shrinkage	Can twist, shrink, or warp as it dries
Fire performance	Non-combustible and commonly used in fire-rated systems	Combustible, though can be treated or protected
Moisture behaviour	Doesn’t swell or move with moisture changes	Can absorb moisture, leading to movement or decay
Installation	Requires specific fixings and tools, and some familiarity	Easy to cut and fix with standard tools
Speed on site	Efficient for large, repetitive layouts	Often quicker for small or one-off jobs
Fixings for fittings	May need pattressing or additional supports	Easier to fix joinery and fittings directly
Material waste	Reduced waste due to uniform sizes	More waste due to natural variation

Question 6

6. How do you install a door frame in a metal stud wall?

Accepted Answer

To install a door frame in a metal stud wall, you first need to create a correctly sized opening within the stud and track layout. Start by setting out the opening to suit the door frame size, allowing for the required tolerance. Install full-height studs (often doubled) on either side of the opening to act as the main supports. A horizontal head section, sometimes formed from track or a reinforced channel, is then fixed across the top to create the opening.

The door frame is typically positioned within this opening and fixed back to the studs using appropriate screws or fixings. Additional short studs or noggings may be added around the frame to provide fixing points and improve rigidity. Once fixed, the surrounding metal stud wall can be boarded and finished as normal. Accurate setting out is critical, as incorrect sizing or alignment can cause issues when hanging the door.

Question 7

7. Is metal stud framing the same as an MF ceiling system?

Accepted Answer

No, metal stud framing and MF ceiling systems are not the same, although they use similar materials and are often part of the same drylining package. Metal stud framing is a general system used to build internal walls, partitions, and some ceiling structures using metal c studs and metal track sections. It forms the vertical and horizontal framework for walls.

An MF ceiling system (metal frame ceiling) is a specific type of suspended ceiling. It uses ceiling channels, primary channels, and perimeter sections to create a grid that supports plasterboard below the structural soffit. These systems are designed to form flat, concealed ceilings and create voids for services such as ducting and cables.

In practice, MF ceilings are one application within the wider category of metal framing systems. On most projects, you’ll see both used together: metal stud framing for partition walls, and MF ceiling components for suspended ceilings.

Metal stud framing

70mm Metal C Stud 3000mm

MF7 Metal Primary Support Channel 3600mm

70mm Metal C Stud 2400mm

70mm Metal C Stud 2700mm

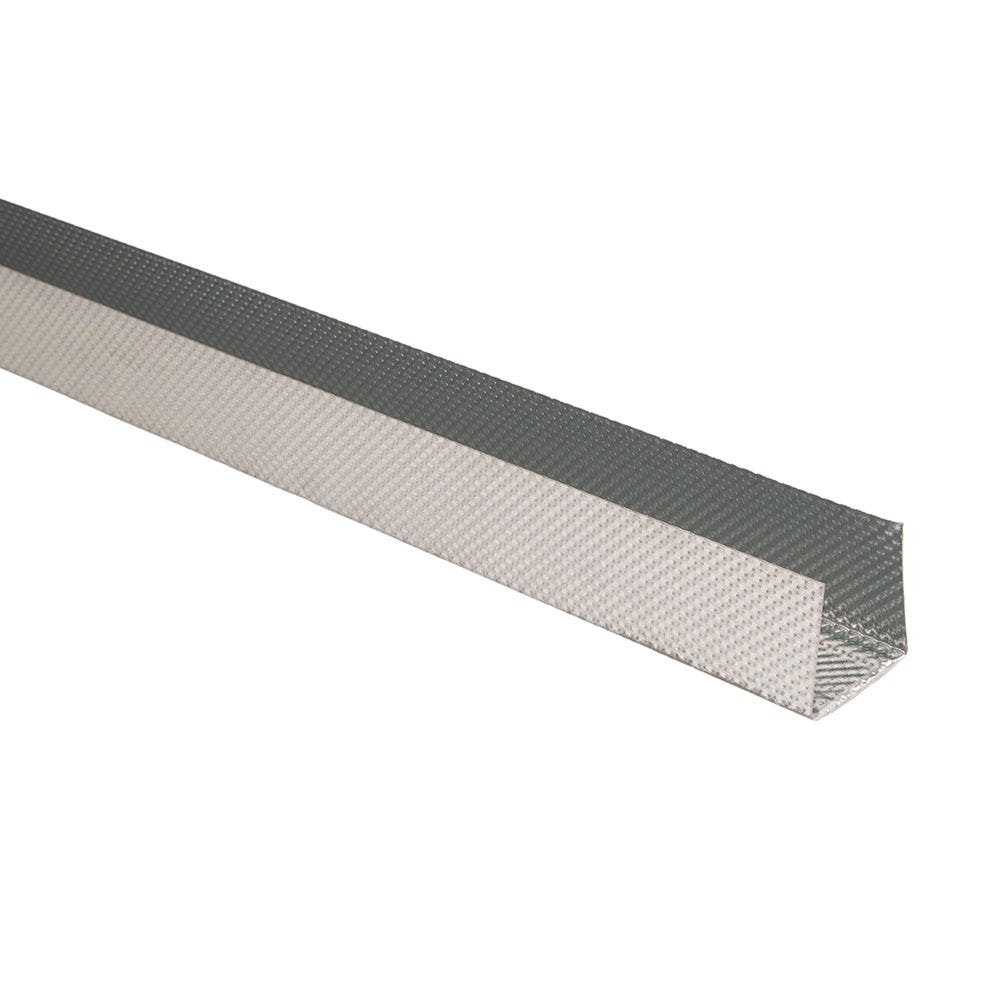

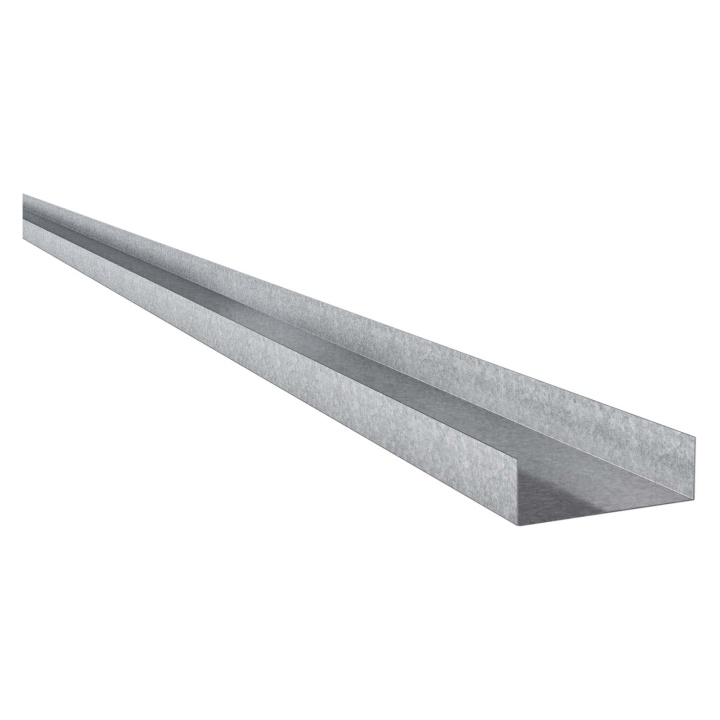

72mm Standard Metal U Track 3000mm

50mm Metal C Stud 3000mm

50mm Metal C Stud 2700mm

52mm Standard Metal U Track 3000mm

Expamet Galvanised Internal Metal Lath 700 x 2500mm

70mm Metal C Stud 3600mm

50mm Metal C Stud 3600mm

50mm Metal C Stud 2400mm

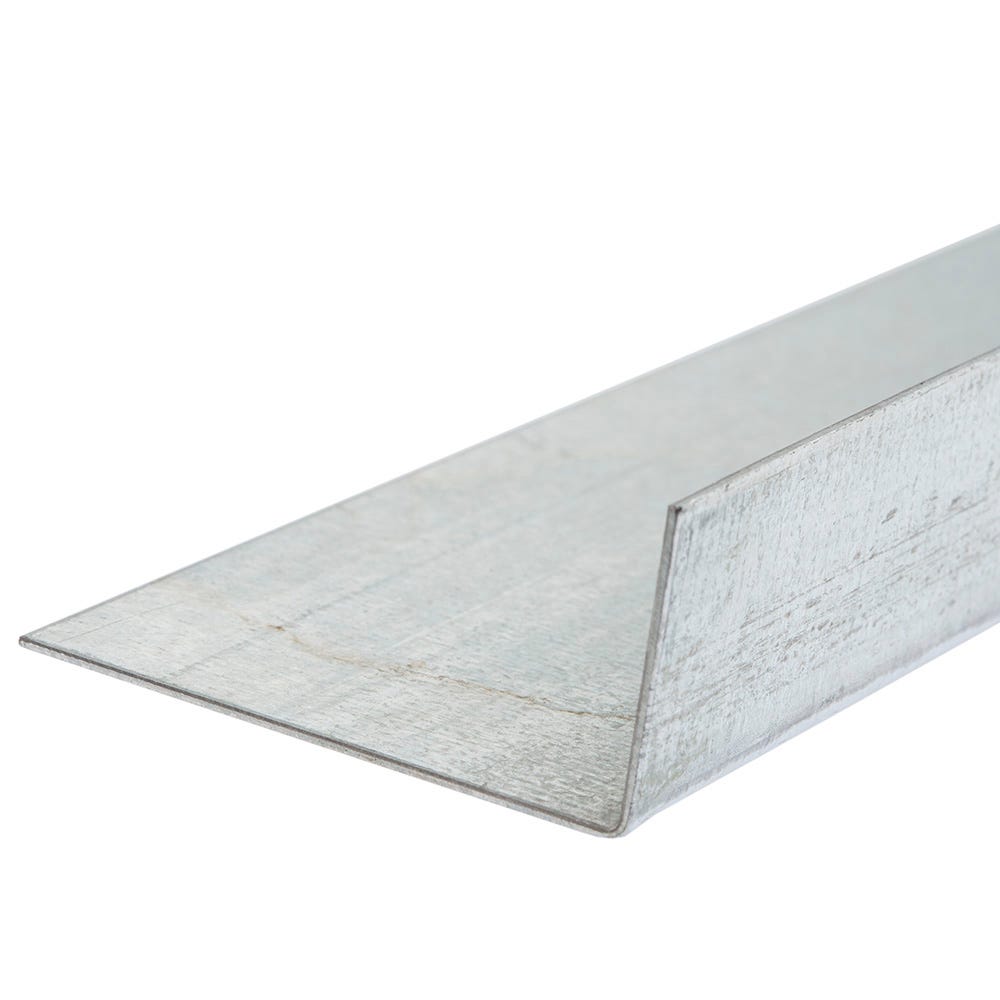

25mm x 25mm British Gypsum Gypframe Steel Angle 2900mm FEA1

MF Suspended Ceiling Furring To Channel Connector Clips MF9 (Pack of 200)

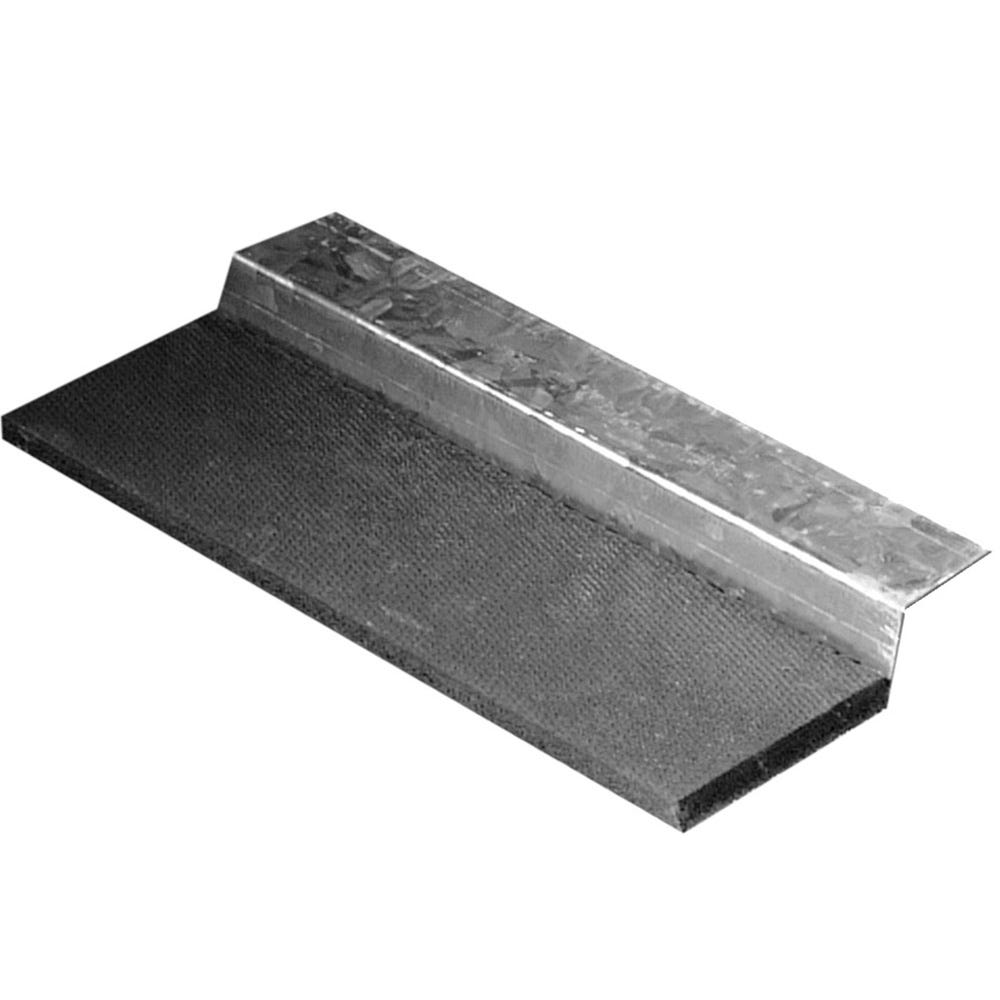

British Gypsum Gypframe Acoustic Floor Channel 2000mm SIF1

70mm British Gypsum Gypframe C Stud 2700mm 70 S 50

70mm British Gypsum Gypframe C Stud 2400mm 70 S 50

94mm Standard Metal U Track 3000mm

48mm Metal C Stud 2700mm FS48

48mm Metal C Stud 3000mm FS48

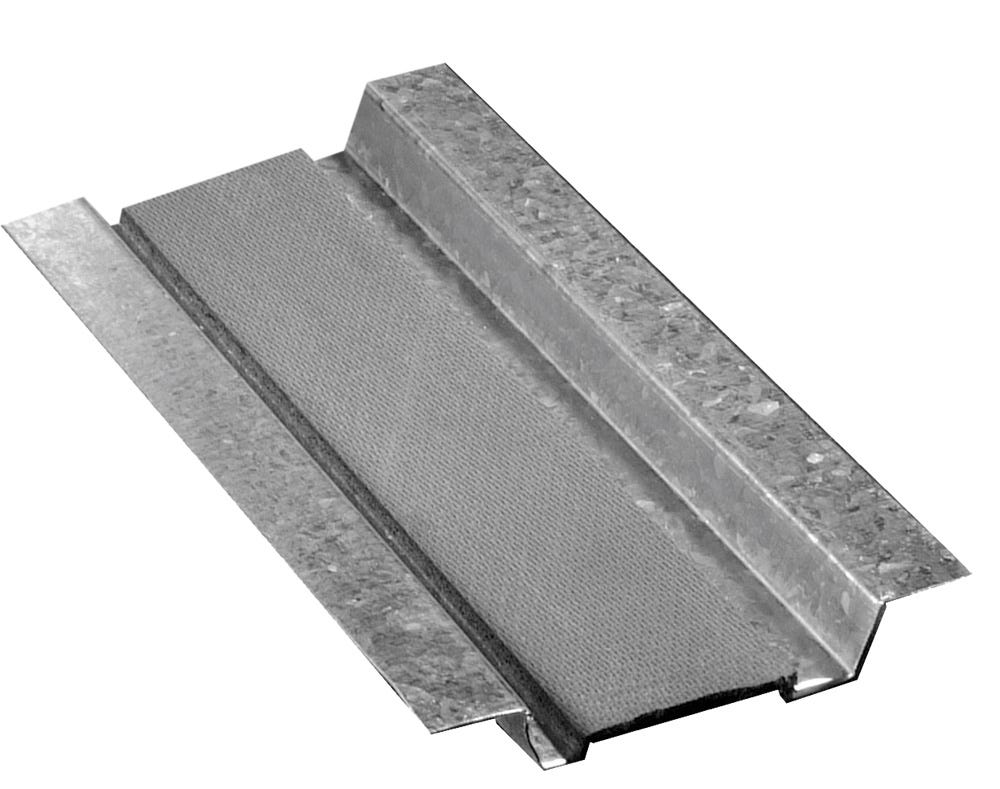

British Gypsum Gypframe Floor Channel 2000mm SIF2

72mm British Gypsum Gypframe Folded Edge Channel 3600mm 72 FEC 50

50mm British Gypsum Gypframe Folded Edge Channel 3600mm 50 FEC 50

72mm British Gypsum Gypframe Deep Flange Channel 3600mm 72 DC 60

70mm British Gypsum Gypframe Fixing Strap 2400mm GFS1

70mm British Gypsum Gypframe C Stud 3000mm 70 S 50

48mm British Gypsum Gypframe C Stud 2700mm 48 S 50

70mm British Gypsum Gypframe C Stud 3600mm 70 S 50

70mm British Gypsum Gypframe C Stud 4200mm 70 S 50

72mm British Gypsum Gypframe Extra Deep Flange Channel 3600mm 72 EDC 80

70mm Metal C Stud 4200mm

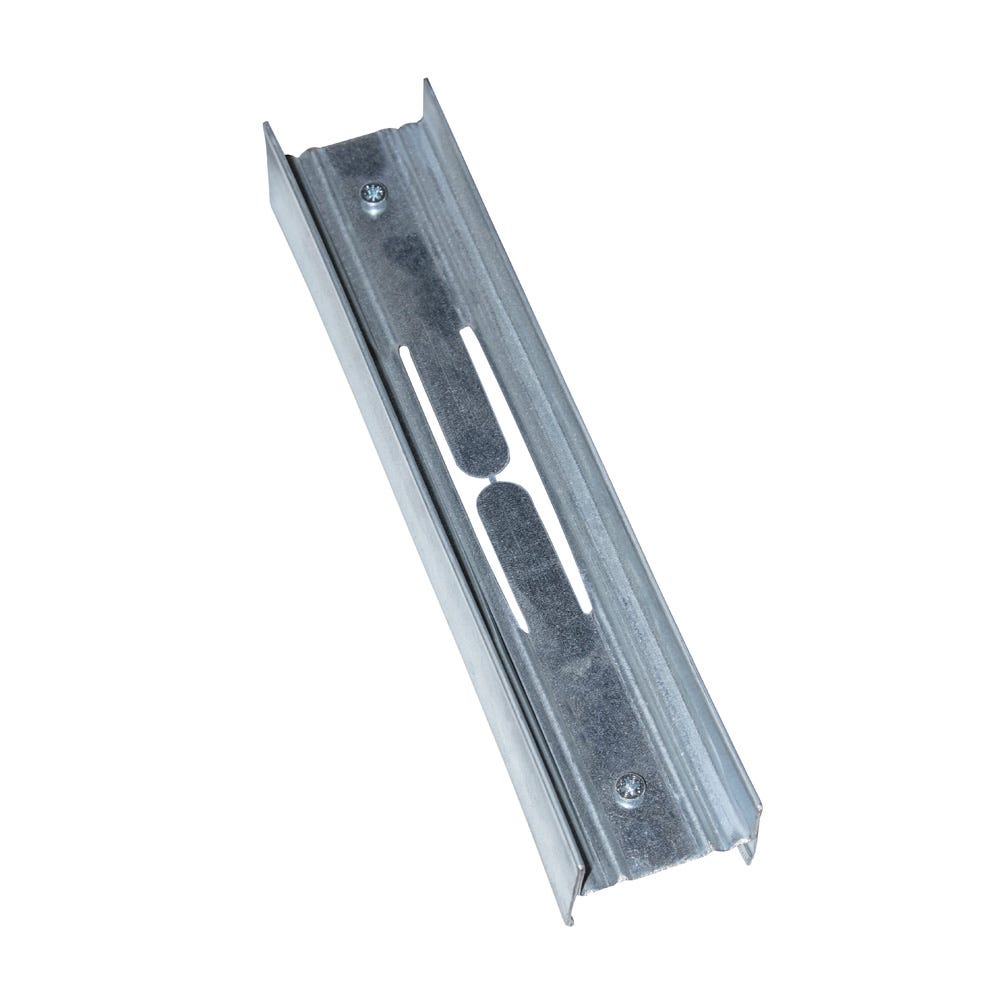

British Gypsum Gypframe Fixing T GFT1 2400mm

British Gypsum MF9 Connecting Clip (Pack Of 200)

British Gypsum Casoline MF Ceiling Soffit Cleat MF12 (Pack of 100)

Expamet Stainless Steel External Metal Lath 700 x 2500mm

48mm British Gypsum Gypframe C Stud 3600mm 48 S 50

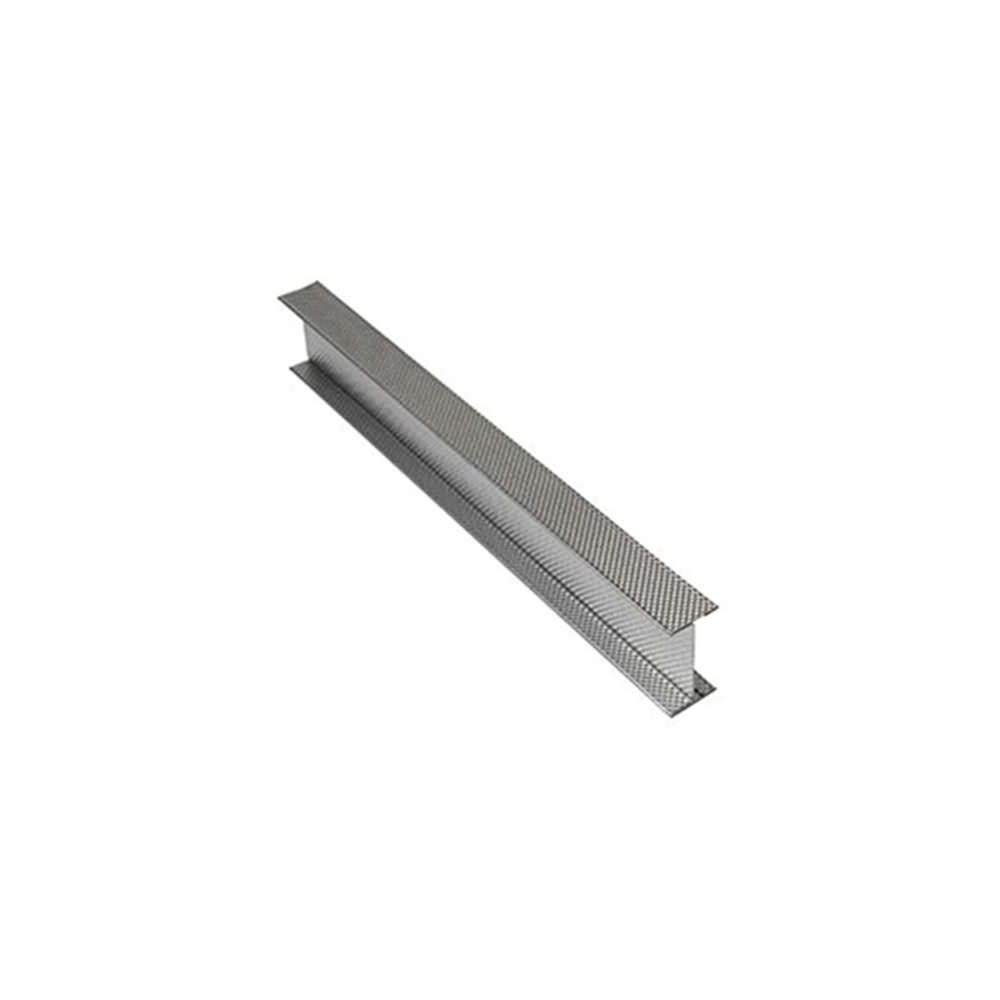

50mm Metal I Stud 3600mm

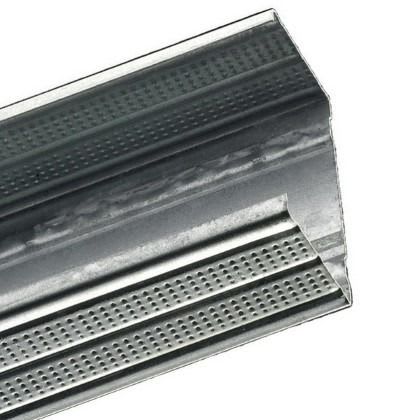

British Gypsum Gypframe Ceiling Section 3600mm MF5
